yachtSOFT.com...innovative products for boaters PCMCIA Serial Cards
yachtSOFT.com price: Starting At $149


Many of today's marine software applications require their own serial port for talking to other devices, and most laptops only come with one. Electronic Charting to
Performance Software to
Instrument System
Weatherfax to SSB Radio
NEWS FLASH:   USB to Serial RS232 Converters Now Available, See Pricing Below !!
We recommend Quatech Serial cards, with the best construction and quality of all on the market. This card comes in 3 versions, creating either 1, 2 or 4 serial ports from a single PCMCIA card.

FEATURES (single port):
- PCMCIA card standard specification 2.1 compliant
- Support for Windows 95/98, Windows NT, OS/2,
     DOS/Windows 3.1x and SCO UNIX
- Selectable & shareable interrupt (IRQ 3-7, 9-12, 14, 15)
- Selectable I/O base address
- Default automatic configuration at next available COM port & IRQ

Features for the dual and quad cards are similar, adding appropriate features for interrupt sharing and com port assignments.

Please Note:   If you need to add two additional ports, some applications require exclusive interrupt usage, in which case you cannot use a dual card, but must instead use two singles.

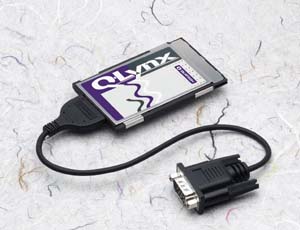

Quatech Single Port Serial Card

Quatech's SSP-100 (shown above) is a PC-Card 2.1 compliant Type-II PCMCIA card which adds a single asynchronous serial interface to the host computer. The SSP-100 provides a standard RS-232 interface which is implemented with a 16550 UART to provide 16 byte transmit and receive FIFOs for increased performance in multitasking environments and for applications involving high data rates.

The SSP-100 will be assigned to the lowest COM port available by default. However, users may select the particular COM port to which the SSP-100 is assigned. In addition, users may specify any interrupt level and any I/O space base address for the SSP-100.

All necessary software is included to install and configure the card for use with DOS/Windows 3.x, Windows 95/98,Windows NT 4.0 and OS/2. Support for SCO UNIX System V is available as an option.

Single Port: $169.00

Dual Port: $249.00

Quad Port: $495.00


Click here for more about our new USB to Serial RS232 Converters

Dual RS232 Port USB Converter

Quad RS232 Port USB Converter

Click here for more about our new USB to Serial RS232 Converters

Top Of Page


or call:

1(800)483-8100, code #97
(outside NY Metro), or


Please e-mail or telephone us if you have any questions about or would like to order
any of these Quatech products, or any other hardware, software or equipment.

  yachtSOFT.com, LLC tel: 1(800)483-8100, code #97 (outside NY Metro) or 1(516)482-8800   fax: 1(516)482-8801
  purchase on the web at: http://www.yachtsoft.com  e-mail: info@yachtsoft.com

yachtSOFT.comtm can bundle complete packages for you, including marinized laptop computers, pre-installed software including electronic charting and CD-ROM charts, weatherfax, yacht management, along with hand-held GPS, etc., and dealer tech support, making the transition to marine computing as easy as possible. Please contact us to assemble a system that works for you, and within your budget.
